• This electromagnetic‑drive demonstrator visualizes rotating‑magnetic‑field effects, for exploring core working mechanisms behind electric motors during electromagnetism research.

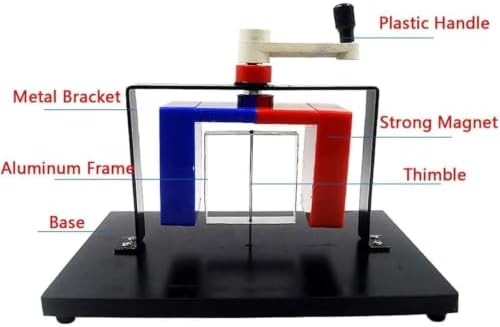

• Assembly includes support bracket, high‑strength rotating permanent magnet, conductive aluminum frame and supporting thimble. Thimble structure enables low‑resistance rotation of the aluminum frame.
• Shows key electromagnetic phenomena: relative movement between magnetic field and conductor creates induced current inside the conductor. The induced current generates Ampere force to produce mechanical motion output.
• Operate the rocker to adjust magnet rotation speed and spin direction. The aluminum frame rotates synchronously with the magnet and reverses rotation accordingly, delivering clear visible experimental feedback.

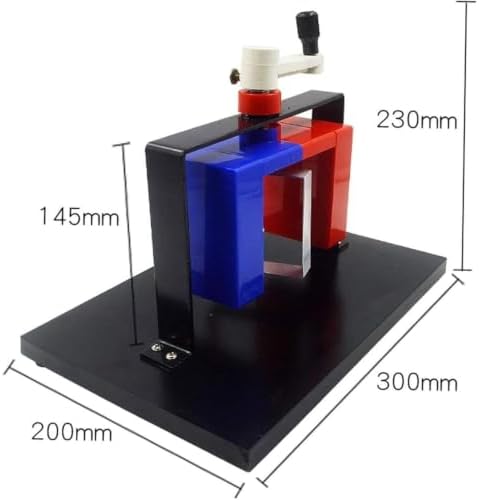

• Built with metal components paired with strong permanent magnet. Overall dimension: base 300×200 mm with total height 230 mm. Stable mechanical construction supports repeated lab‑based experimental operations.
